Photoelectric Activation
Wave a hand in front of the electric eye to request the preset tape length.
Hands-free electric gummed tape dispenser

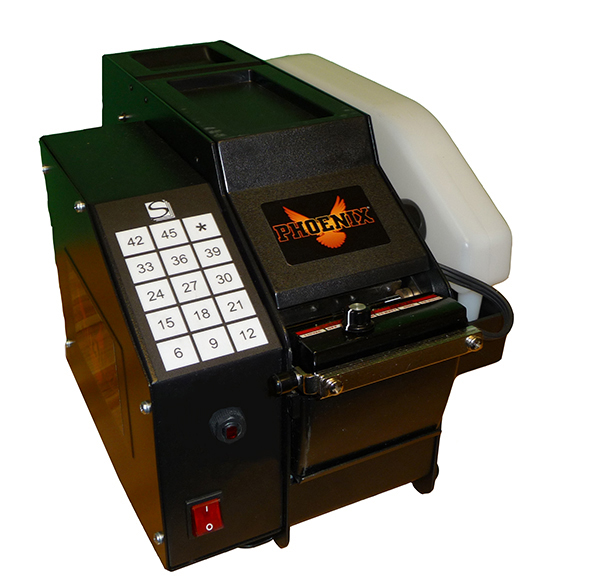

Phoenix E2 Electric Eye Tape Dispenser
The Phoenix E2 (PE2) is an electric water-activated tape dispenser with photoelectric, hands-free tape dispensing for carton sealing.
Select the required tape length, then activate the electric eye with a hand movement to dispense tape when needed. This on-demand operation avoids leaving a pre-dispensed strip waiting at the machine.
Machine features
Hands-Free Tape Dispensing on Demand
The E2 combines measured tape dispensing with a photoelectric sensor that can trigger the next strip without pressing a keypad for each cycle.
Measured Tape Lengths
Select repeatable tape lengths for common carton sizes.
On-Demand Operation
Dispense the strip when the operator is ready rather than leaving activated tape exposed while waiting.
Moistening System
Brushes apply water to activate the adhesive before the strip is applied to a carton.
Top Heater
A top heater assists with activating the adhesive on water-activated tape.
Automatic Cutting
The machine cuts the dispensed strip to the selected length.
How it works
Electric Eye Dispensing for Packing Stations
With the Phoenix E2, the operator selects a length for the carton being sealed. When another strip is needed, a hand movement at the photoelectric sensor activates dispensing.
Because tape is dispensed on demand, the operator does not need to leave a wetted strip exposed while finishing another task. The machine feeds, moistens and cuts the tape for application.
For operations needing more advanced programmable dispensing options, compare the Phoenix E4 Elite.
Phoenix E2 at a Glance
- Model: Phoenix PE2 / E2
- Electric water-activated tape dispenser
- Photoelectric hands-free activation
- Preset-length dispensing
- Moistening brushes and top heater
- Designed for corrugated carton sealing
Technical details
Phoenix E2 Specifications
The figures below come from the original PhoenixTapeMachines.com E2 listing. Confirm current-production specifications before ordering.
| Dispensing Lengths | 6 to 45 inches in 3-inch increments |
|---|---|
| Dispensing Speed | Up to 40 inches per second |
| Tape Width | 1½ to 3 inches |
| Maximum Tape Roll Diameter | 8 inches |
| Water Bottle Capacity | 1 liter |
| Power Requirement (original listing) | 120V AC |
| Shipping Weight (original listing) | 32 lb |
Machine dimensions have been omitted pending verification. Electrical requirements may vary by production version.
Documentation and service
Manuals, Setup & Repair Information
Use the manufacturer's current documentation for operation, maintenance and replacement parts.
Illustrated Electronic Parts Diagrams
Explore eight illustrated electronic dispenser parts views on this website, including the motor, controls, and tape basket.
Explore parts diagrams →Manufacturer Setup Videos (external)
See manufacturer videos covering PE2 unboxing and machine setup.
View setup videos →Maintenance & Repairs
Review demonstrations for common service and maintenance procedures.
View repair resources →Illustrated parts reference
Phoenix Electronic Dispenser Parts Diagrams
Browse illustrated views of electronic Phoenix tape dispensers, including the motor side, controls, tape basket, and components under the top cover. These diagrams are provided as a general parts-identification reference; confirm compatibility with your specific E1, E2, or E4 before ordering.
Motor Side
Start with the motor-side illustration and navigate to the other electronic parts views.
Explore electronic parts diagrams →Electronic Controls
Examine the electronic controls illustration and related views.
View controls diagram →All Electronic Parts Views
See the complete set of eight illustrated reference pages.
Browse all diagrams →Questions About the Phoenix E2?
Contact Pro Pack Solutions about machine selection, parts and availability.
